Red Light Therapy Panel 630nm 660nm 810nm 830nm 850nm Full Body Benefits
The Science of Depth
Five Wavelengths. Every Layer Covered.
How to use the Advantage panels
Choose your mode
Select the Advantage Mode that matches your goal — Joint Care, Face and Eyes, Skin, Sleep, Workout, or Mood and Wellness. Each mode is a preset blend of red and near infrared light calibrated to the optimal intensity for that specific wellness goal.
Stand where the screen tells you
The touchscreen displays exactly how far to stand from the panel for your selected mode. No guesswork, no calculations. Position yourself at the recommended distance and press start.
Relax and let the panel do the work
The session runs automatically at the correct intensity and timing for your chosen mode. When the treatment is complete, the panel switches off. A typical session lasts 5 to 15 minutes depending on the mode.
Or customise your own session
Want full control? Use the touchscreen to create a custom session — adjust the red and near infrared intensity independently, set your own timer, and choose your preferred distance. You can also connect multiple panels and control them all from the remote control.
Every order includes a full user guide, bonus guides, and free Zoom consultations to help you get the most from your panel.
Download the user guideWhat's included

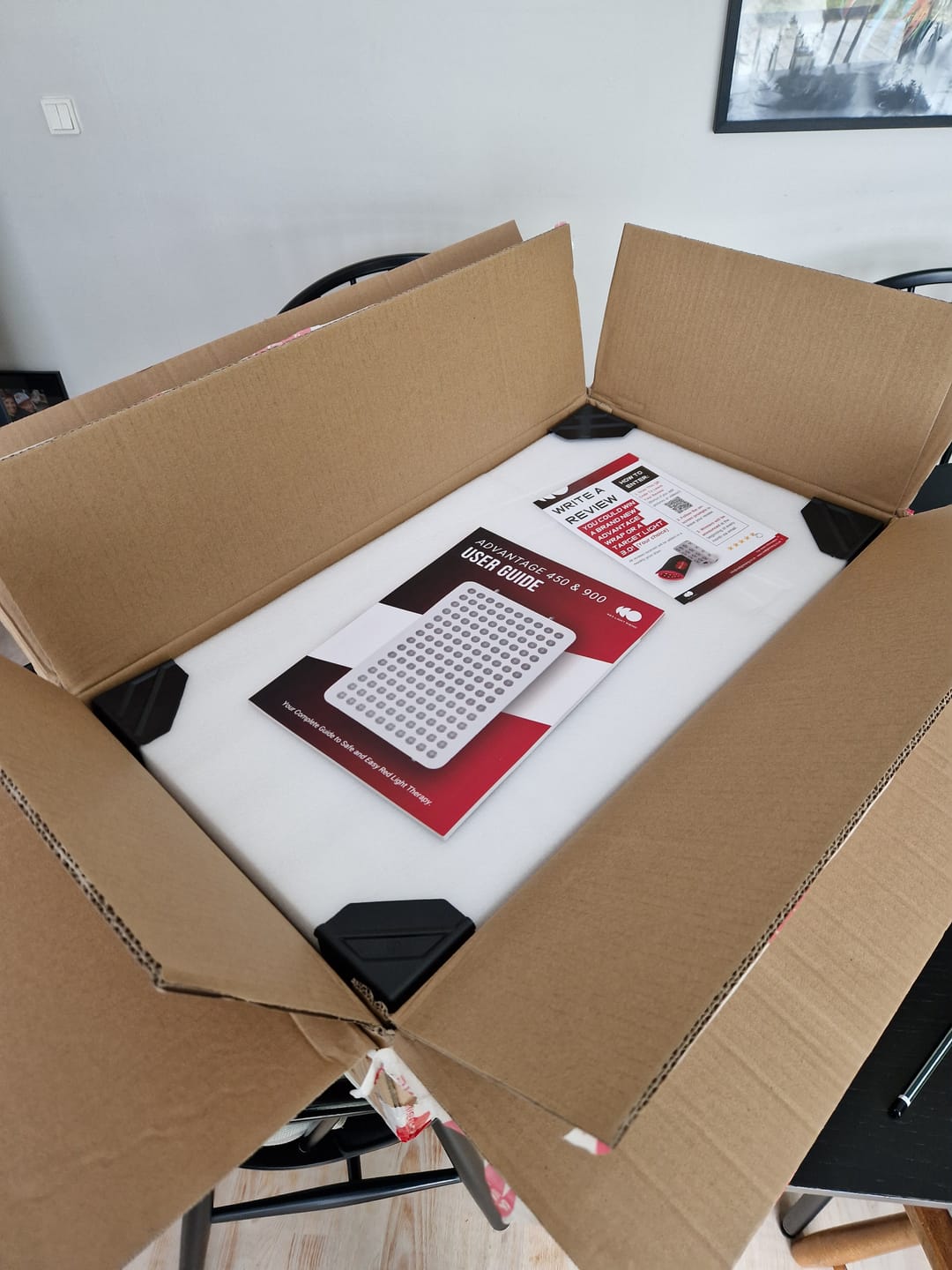

Advantage Panel (450 or 900) | Power Cable | Patch Cable | Door / Wall Hanging Kit | Remote Control | Eye Protection | Full User Guide + Bonus Guides
Technical specifications
Red Light Rising Advantage Panels
| ADV 900 | ADV 450 | |
|---|---|---|
| Wavelengths | 630nm, 660nm (red) + 810nm, 830nm, 850nm (near infrared) | |
| Modes | 6 preset Advantage Modes + custom settings | |
| Irradiance at 15cm (6 inches) | 86.4 mW/cm² | |
| Measured using Hopoocolor OHSP-350F spectral irradiance meter (380–1050nm). Device warmed up 15 minutes before reading. Multiple readings averaged. | ||
| LEDs | 300 × 3W | 150 × 3W |
| Wavelength distribution | 630nm ×30, 660nm ×120, 810nm ×20, 830nm ×20, 850nm ×110 | 630nm ×15, 660nm ×60, 810nm ×10, 830nm ×10, 850nm ×55 |
| Rated power | 900W | 450W |
| Real power | 430W | 215W |
| EMF (magnetic) at 15cm (6 inches) | 1.2 mG | |
| EMF (electric) at 15cm (6 inches) | 0 V/m | |
| EMF measured using TriField TF2 meter on non-conductive surface. Device warmed up before reading. | ||
| For a full explanation of these readings and what they mean, see the EMF question in our FAQ section below. | ||
| Flicker | 0% — flicker free | |
| Safety certifications | CE, ROHS | |
| Dimensions | 91 × 30 × 6.5cm | 45 × 30 × 6.5cm |
| Weight | 11kg | 7.5kg |
| Casing | Steel | |
| Mounting | 2 hanging pins (door/wall kit included) | |
| Coverage area | Full body (standing) | Half body or targeted area |
| Modular connectivity | Connect multiple panels via patch cable, control from one remote | |
| Controls | Built in touchscreen + wireless remote control | |
| Cooling | Built in fans (whisper quiet) | |
| Power supply | Mains powered | |
| Warranty | 3 years (covers manufacturing faults only) | |
| Trial period | 365 day money back trial | |
Tested and verified in house
All irradiance readings for the Advantage panels were measured using a Hopoo OHSP-350F Portable Spectral Irradiance Colorimeter, the same instrument widely used by independent red light therapy reviewers and considered one of the most accurate handheld spectrometers available outside of a laboratory setting.
We publish these figures transparently so you can compare our devices against any other brand on a like for like basis. Where independent laboratory testing is available (see our Target Light 670 and Target Light 2.0), we publish those results alongside our in house data.
The OHSP-350F measures spectral irradiance, wavelength distribution, and colour rendering across the full visible and near infrared spectrum, providing accurate readings at any distance from the light source.
Spectral output and wavelength distribution
Irradiance measurement at treatment distance
Backed by research
The Advantage panels deliver five of the most frequently studied wavelengths in red light therapy and photobiomodulation research. The red wavelengths (630nm and 660nm) are widely explored for their potential role in supporting skin wellness, collagen processes, and eye comfort at the surface level. The near infrared wavelengths (810nm, 830nm, and 850nm) penetrate progressively deeper into tissue, where studies suggest they may support joint comfort, muscle wellness, and cellular energy production by interacting with cytochrome c oxidase. This multi wavelength approach is designed to support every layer from skin to deep tissue in a single session.
Read more about the science →Is the Advantage Panel right for you?
This might be right for you if...
- ✓ You want full body or half body red light therapy coverage in a single session — not just one area at a time
- ✓ You want the widest wavelength range in our lineup — 5 wavelengths covering surface skin to deep tissue
- ✓ You want preset smart modes that automatically set the intensity, timing, and distance for your goal — no guesswork
- ✓ You want a device you can expand over time — connect multiple panels together and control them all from one remote
- ✓ You want the flexibility to use red light therapy for skin, joints, muscles, eyes, sleep, and mood in one device
- ✓ You're setting up a dedicated wellness space at home or adding red light therapy to your clinic
- ✓ You want touchscreen and remote control so you can adjust settings mid session without moving from position
This might not be right for you if...
-
✗
You want a portable handheld device you can hold against specific areas or take on the go
→ Consider the Target Light 3.0 -
✗
You want a wearable device you can strap to your body and move around freely
→ Consider the Advantage Wrap -
✗
You only need red light therapy for your face and eyes and don't need full body coverage
→ Consider the Target Light 670 or Target Light 2.0 -
✗
You want a professional grade spotlight with a floor stand for clinic treatments
→ Consider the Target Light 4.0 -
✗
You're looking purely for a circadian lighting or ambient sleep lamp
→ Consider the Dusk Lamp
Frequently asked questions
Both panels use the same 5 wavelengths (630nm, 660nm, 810nm, 830nm, 850nm), the same 6 Advantage Modes, the same touchscreen and remote control, and deliver the same irradiance per LED. The difference is size and coverage.

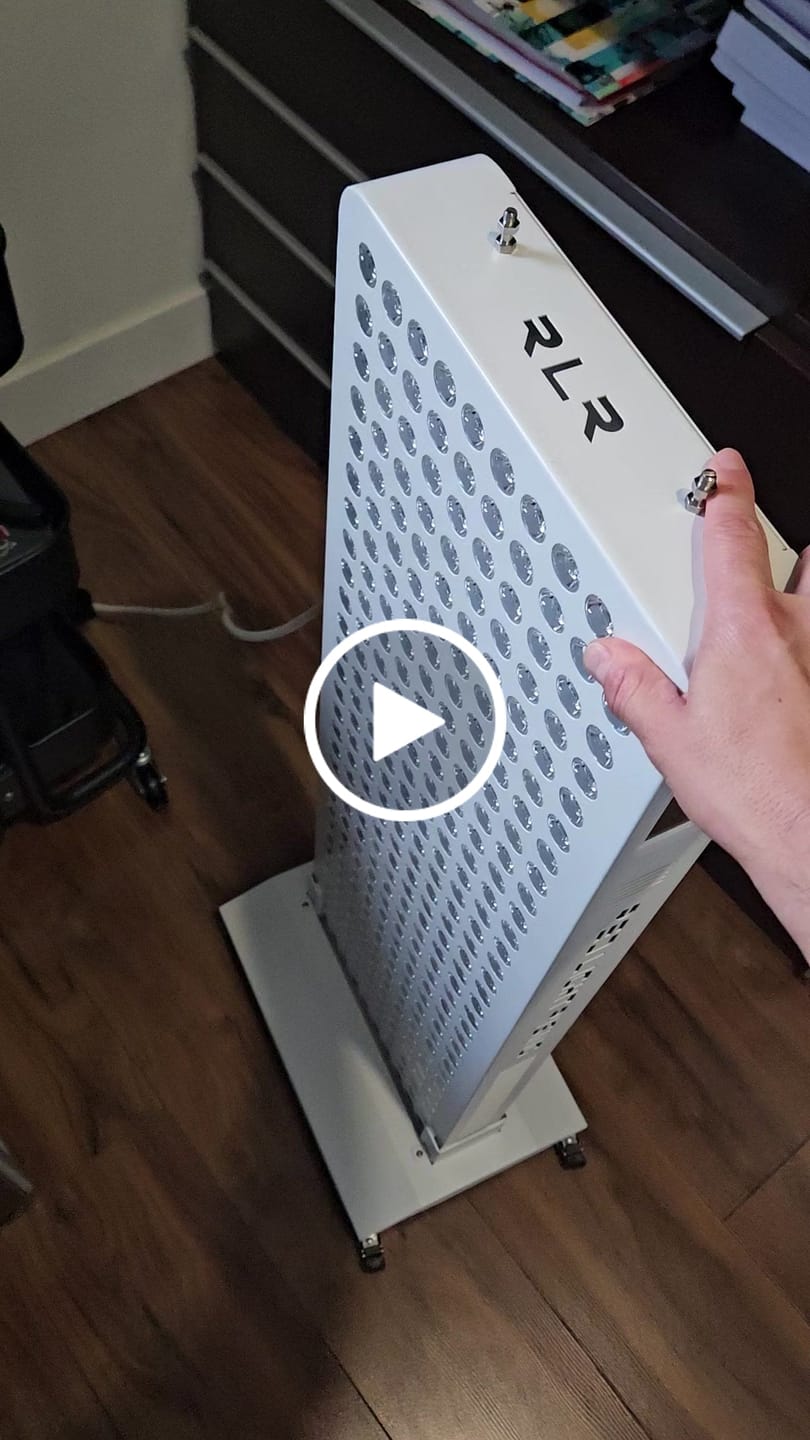

The Advantage 900 (91 × 30cm, 300 LEDs, 11kg) is designed for full body coverage when standing. It pairs with an optional floor stand on wheels, which is ideal for seated or floor based sessions like meditation.
The Advantage 450 (45 × 30cm, 150 LEDs, 7.5kg) is designed for half body or targeted coverage. It pairs with an optional desktop stand so you can place it on top of a dresser, coffee table, or desk for seated treatments.
Both panels come with a door hanging kit as standard. The floor stand and desktop stand are optional extras available separately.
If you are unsure which size to start with, the panels are fully modular — you can always add a second panel later and connect them together.
Each Advantage Mode is a preset blend of red and near infrared light calibrated to the optimal intensity for a specific wellness goal. Select a mode on the touchscreen or remote and the panel does the rest — it sets the wavelength mix, intensity, timing, and even tells you how far to stand.
Joint Care — red and near infrared light blended to support joint flexibility and comfort.
Face and Eyes — a gentle, calming setting designed to support eye comfort, skin tone, and facial wellness.
Skin — optimised red light wavelengths for smoother, brighter, more radiant looking skin.
Sleep — low intensity red light to help you wind down naturally and support better rest.
Workout — high intensity red and near infrared light to support energy, performance, and post workout wellness.
Mood and Wellness — a balanced setting to help lift your mood and support mental clarity.
You can also create fully custom sessions by adjusting the red and near infrared intensity independently via the touchscreen.
The easiest approach is to use one of the 6 Advantage Modes — the touchscreen will tell you exactly how far to stand and for how long based on your selected goal.
For custom sessions, a general guideline is 15cm for maximum irradiance on a targeted area, or 30 to 45cm for gentler full body exposure. Sessions typically last 5 to 15 minutes depending on the goal and intensity.
The rule of thumb is simple — it should feel warm but never hot. If it feels too warm, increase the distance or reduce the intensity via the touchscreen or remote.
You can use the panel once or twice daily. Morning sessions may support energy and focus, while evening sessions support relaxation and sleep.
Yes. The Advantage panels are fully modular. Use the included patch cable to connect two or more panels together, and control them all from a single remote.

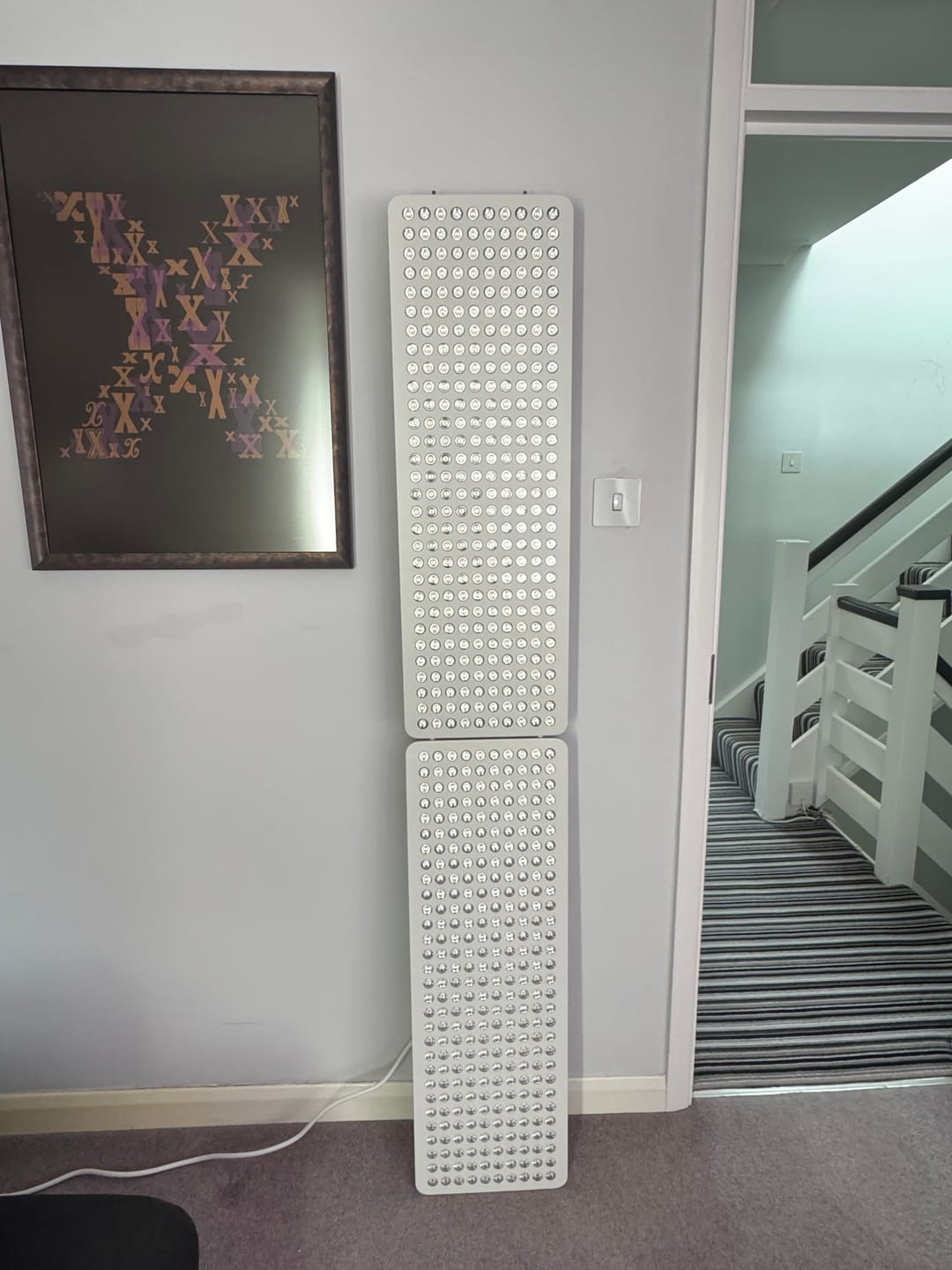

You can connect panels horizontally (side by side for wider coverage) or vertically (stacked for taller coverage). Up to 4 panels can be connected to build a full light wall.
When connecting more than one panel, we recommend using either a vertical stand (for standing treatments) or a horizontal stand (for over the bed treatments). These stands are available separately and are designed to hold multiple panels securely.
This modular design means you can start with one panel and expand your setup over time without replacing any equipment.
The Advantage panels are designed for full body or half body coverage with 5 wavelengths, 6 smart modes, and a fixed installation (door hanging, stand, or wall). They are ideal for comprehensive daily sessions covering skin, joints, muscles, eyes, sleep, and mood in one device.
The handheld Target Lights are designed for targeted, portable use on specific areas — a single joint, the face, or the eyes. They are smaller, lighter, and more affordable.
Many of our customers own both — a panel for their daily full body session and a handheld for targeted top ups on specific areas throughout the day.
If you are unsure which to start with, the Target Light 670 (£119) is our most affordable entry point, while the Advantage 450 (£920) is the entry point for full coverage panel therapy.
Every Advantage panel comes with a door hanging kit as standard. Simply hook the kit over any standard door and hang the panel — no drilling, no tools, and it takes less than a minute to set up.
For a more permanent or flexible setup, we offer a range of optional stands. The Advantage 900 pairs with a floor stand on wheels, ideal for positioning the panel at different heights for standing, seated, or floor based sessions like meditation. The Advantage 450 pairs with a desktop stand for placing on a dresser, coffee table, or desk.
For multi panel setups, vertical stands and horizontal stands (manual or motorised) for over the bed use are also available separately.
All stands are compatible with both panel sizes and are designed for quick, tool free assembly.
This is completely normal and your panel is working correctly.
The Advantage panels contain 5 types of LEDs across two wavelength groups. The 630nm and 660nm red LEDs produce a bright, visible glow. The 810nm, 830nm, and 850nm near infrared LEDs, however, emit light that is almost entirely invisible to the human eye. They may appear very faintly lit or completely dark.
This is not a fault — it is a sign that your panel is producing genuine near infrared light at the correct wavelengths. If the near infrared LEDs appeared bright red, it would suggest they are not emitting true near infrared light.
To confirm all LEDs are working, use the touchscreen to create a custom session with only near infrared active and red set to 0%. In a dark room, view the panel through your phone camera. Most phone cameras can detect near infrared light and will show a faint purple or white glow from the LEDs that appear dark to the naked eye.
At 15cm treatment distance, the Advantage panels measure 1.2 mG magnetic field and 0 V/m electric field using a TriField TF2 EMF meter.
The magnetic reading of 1.2 mG is just above the Building Biology "no concern" threshold of 1 mG but well under the "slight concern" level of 5 mG. The electric field at zero is as good as it gets. These are strong numbers for a mains powered panel of this size and power output.
For comparison, our battery operated devices (the Target Light 3.0 and the Advantage Wrap) produce zero detectable EMF. If EMF is a primary concern and you need a panel format device, the Half Stack has the best EMF profile of any mains powered product in our range at 0.0 mG magnetic field.
It's worth bearing in mind that every electronic device you use in daily life produces some level of EMF — your phone, your TV, your kettle, your fridge, your Bluetooth headphones, your fitness tracker. EMF is a normal part of modern life and virtually impossible to avoid entirely. The additional EMF exposure from a red light therapy session is small in the context of everything else you're already exposed to, and we believe the wellness benefits of consistent use far outweigh any concern about the modest EMF levels involved.
The Advantage panels come with a 3 year warranty covering manufacturing faults — the longest warranty we offer on any product.
For private, individual customers, we offer a 365 day money back trial — a full year to use the panel at home and decide if it is right for you.
For commercial use customers including gyms, clinics, wellness centres, and other businesses, the 365 day trial does not apply. Commercial customers receive an extended evaluation period of 60 days from the date of delivery, subject to our standard returns policy.
The 3 year warranty applies to all customers regardless of use case.
Every order also includes free Zoom onboarding, a full user guide with bonus guides, and ongoing customer support from our team.
